The Versatile World of Polyester Staple Fiber: From Apparel to Industry- Jiaxing Fuda Chemical Fiber Factory

Introduction to Polyester Staple Fiber (PSF)

Polyester Staple Fiber (PSF) is a synthetic fiber made from polyethylene terephthalate (PET). Unlike continuous filament fibers, PSF consists of discrete, cut lengths of polyester fibers. Think of it like short strands of hair versus a long, continuous thread.

PSF is incredibly important and widely used across various industries due to its versatile properties. It's a cornerstone in the textile industry for everything from clothing to home furnishings, and it's essential in non-woven applications, filling materials, and even specialized uses in the automotive and geotextile sectors. Its blend of durability, cost-effectiveness, and adaptability makes it an indispensable material in modern manufacturing.

What is Polyester Staple Fiber (PSF)?

PSF is a manufactured fiber composed of polyester, a synthetic polymer. The term "staple" refers to its short, cut lengths, which can range from a few millimeters to several centimeters. These short lengths allow the fibers to be spun into yarns, much like natural fibers such as cotton or wool.

The key difference between staple fiber and filament fiber lies in their length.

Staple fibers are short, discontinuous fibers. They typically have a softer, more natural feel and are often blended with other fibers. Imagine short cotton fibers that are spun together.
Filament fibers are continuous, unbroken strands of indefinite length. They generally produce smoother, more lustrous fabrics. Think of a single, long strand of silk or a fishing line.

The chemical composition of polyester is primarily polyethylene terephthalate (PET). This polymer is formed through a chemical reaction involving terephthalic acid (or its dimethyl ester) and ethylene glycol. The repeating units of PET give polyester its characteristic properties.

The properties of polyester include:

High strength and durability: It's resistant to stretching, shrinking, and many chemicals.
Excellent wrinkle resistance: Polyester fibers retain their shape well.
Good dimensional stability: Fabrics made from polyester tend to hold their form.
Resistance to abrasion: It can withstand wear and tear.
Hydrophobic nature: It repels water, making it quick-drying and resistant to mildew.
Good heat setting properties: Polyester can be heat-set to maintain pleats and creases.

Types of Polyester Staple Fiber

There are two primary types of Polyester Staple Fiber: virgin and recycled.

Virgin PSF

Virgin PSF refers to polyester staple fiber produced directly from new, raw petrochemical materials. The process involves polymerizing purified terephthalic acid (PTA) or dimethyl terephthalate (DMT) with monoethylene glycol (MEG) to form PET chips, which are then melted and spun into fibers. This type of PSF is known for its consistent quality and purity.

Recycled PSF

Recycled PSF is polyester staple fiber produced from recycled polyester materials. The most common source for recycled polyester is post-consumer PET bottles. Other sources can include textile waste and industrial scraps. These materials are collected, sorted, cleaned, and then processed to create new polyester fibers.

The environmental benefits of using recycled PSF are significant:

Reduces reliance on virgin petroleum resources: Less crude oil is needed for production.
Decreases landfill waste: Diverts PET bottles and other polyester waste from landfills.
Lowers energy consumption: Producing recycled polyester generally requires less energy than virgin polyester.
Reduces greenhouse gas emissions: Contributes to a smaller carbon footprint.

Differentiate between Virgin and Recycled PSF

While both virgin and recycled PSF are chemically very similar (both are PET), their origins and environmental impact are distinct. Virgin PSF is made from new fossil fuel-based resources, offering consistent properties and often a slightly higher initial cost. Recycled PSF, on the other hand, utilizes existing plastic waste, promoting sustainability and reducing environmental burden, often with comparable performance characteristics, especially as recycling technologies advance. The choice between them often depends on desired performance, cost, and environmental objectives.

Properties of Polyester Staple Fiber

Polyester staple fiber possesses a combination of physical, mechanical, chemical, and thermal properties that make it highly versatile.

Physical Properties

Denier and cut length:
- Denier is a unit of linear mass density of fibers, defined as the mass in grams per 9,000 meters. A lower denier indicates a finer fiber, leading to softer, more lightweight fabrics, often used for apparel. A higher denier signifies a coarser, stronger fiber, suitable for applications like carpets, industrial fabrics, or filling materials.
- Cut length refers to the specific length to which the continuous polyester filaments are cut to form staple fibers. This length is crucial as it impacts how the fibers can be spun into yarn and the final texture and strength of the fabric. Shorter lengths are often used for blending with natural fibers, while longer lengths provide more strength and resilience. These two factors are critical in determining the fiber's characteristics and uses.

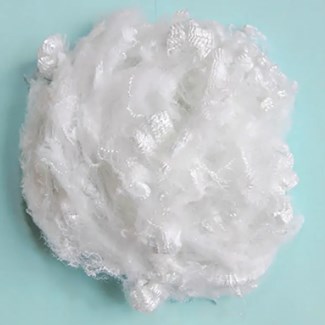

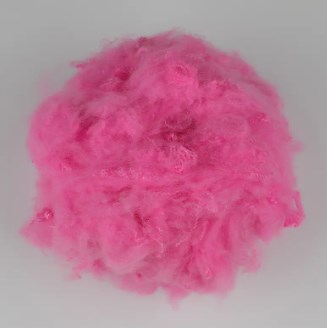

Color and Luster: PSF is naturally off-white or translucent. However, it can be easily dyed to achieve a vast array of colors, offering significant design flexibility. Its luster can also be modified during production, ranging from bright and shiny to dull or matte, depending on the desired aesthetic of the final product. This adjustability in color and luster has a direct impact on the final product's appearance and market appeal.

Mechanical Properties

Tensile Strength: This refers to the maximum stress the fiber can withstand before breaking. PSF has high tensile strength, which is paramount for the durability and longevity of textile products. It allows fabrics to resist tearing and withstand repeated stress, making them suitable for long-lasting applications.
Elongation: This is the extent to which a fiber can stretch before breaking, expressed as a percentage of its original length. Polyester generally has good elongation, meaning it can stretch and recover well without permanent deformation. This property is important for comfort in apparel and for resilience in filling materials, allowing them to bounce back after compression.

Chemical Properties

Resistance to chemicals, acids, and alkalis: PSF exhibits excellent resistance to most common chemicals, mild acids, and alkalis. This makes it suitable for applications where exposure to such substances is possible, like industrial filters or outdoor fabrics, as it won't easily degrade or lose its properties.
Hydrophobic nature and moisture resistance: Polyester is inherently hydrophobic, meaning it repels water and absorbs very little moisture. This characteristic contributes to its quick-drying properties and makes it resistant to mildew, rot, and shrinking when wet. It also means that stains are less likely to penetrate the fiber deeply.

Thermal Properties

Melting point and heat resistance: Polyester has a relatively high melting point (around $25 0^{\circ} C$ or $48 2^{\circ} F$ ). This provides it with good heat resistance, allowing it to withstand high temperatures during processing (like ironing) and in various applications without deforming or degrading
Thermal stability: This refers to the ability of the fiber to maintain its physical and chemical properties over a range of temperatures without significant degradation. PSF exhibits good thermal stability, making it reliable in applications exposed to temperature fluctuations, such as outdoor textiles or insulation.

Manufacturing Process of Polyester Staple Fiber

The production of Polyester Staple Fiber involves several distinct stages, starting from raw materials and culminating in the packaged fiber.

Polymerization

The process begins with polymerization, where raw materials are chemically reacted to create the polyester polymer, polyethylene terephthalate (PET). The primary raw materials are typically purified terephthalic acid (PTA) (or dimethyl terephthalate - DMT) and monoethylene glycol (MEG). These monomers undergo a polycondensation reaction at high temperatures and pressures to form long chains of PET polymer. This results in a molten polymer, which is then typically solidified into chips or flakes.

Spinning

The PET chips are then melted and fed into a melt spinning machine. In this process, the molten polymer is extruded through tiny holes in a spinneret, forming hundreds or thousands of continuous, fine streams of polymer. As these streams emerge, they are cooled rapidly by a blast of air, solidifying into continuous filaments. These filaments are then gathered together to form a tow.

Drawing

After spinning, the filaments are relatively weak and disorganized. The drawing stage involves stretching these continuous filaments, usually over heated rollers, to several times their original length. This process orients the polymer molecules along the fiber's axis, significantly improving its tensile strength, tenacity, and uniformity. Drawing also reduces the denier (fineness) of the individual filaments.

Crimping

To give the fibers bulk, resilience, and a more natural feel, they undergo crimping. This process introduces a permanent, three-dimensional wave or crimp into the continuous filaments. Crimping can be achieved mechanically (e.g., by passing the tow through a crimping box) or by using specialized spinnerets. The added crimp allows the fibers to entangle better during spinning into yarn and provides better bulk and resilience in filling applications.

Cutting

Following crimping, the continuous tow of filaments is fed into a cutter, which precisely cuts the fibers into staple fibers of desired length

Baling

Finally, the cut polyester staple fibers are collected, compressed, and packaged into large bales for transportation and storage. Baling makes handling and shipping more efficient and protects the fibers from contamination before they reach their final manufacturing destination.

Applications of Polyester Staple Fiber

Polyester Staple Fiber (PSF) is an incredibly versatile material, finding its way into a vast array of products across numerous industries.

Textile Industry

PSF is a cornerstone of the textile industry, often used on its own or blended with natural fibers like cotton or wool to enhance performance.

Apparel: Widely used in clothing for its durability, wrinkle resistance, and ability to hold shape. It's found in shirts, trousers, dresses, sportswear, and outer layers. It's also excellent for linings due to its smooth texture and for insulation in jackets and cold-weather gear because of its ability to trap air.
Home Textiles: PSF is a popular choice for bedding (sheets, duvets, pillows), upholstery fabrics for furniture, curtains for their drape and easy care, and carpets due to its wear resistance and colorfastness.

Non-woven Fabrics

PSF is a primary raw material for the manufacturing of non-woven fabrics. These fabrics are made by bonding fibers together using mechanical, thermal, or chemical methods, rather than weaving or knitting.

Examples: Common applications include hygiene products (like wipes and feminine hygiene items), various medical textiles (surgical gowns, masks, drapes), and geotextiles for construction and civil engineering.

Filling Material

PSF is extensively used as a filling material due to its excellent resilience, loft, and hypoallergenic properties.

Use as filling: Found in pillows, cushions, stuffed toys, quilts, and sleeping bags.
Benefits: It provides good loft and bounce-back, is resistant to flattening, and is often hypoallergenic, making it a safe choice for many consumers. It's also lightweight and relatively inexpensive.

Automotive Industry

In the automotive sector, PSF contributes to both comfort and functionality.

Use in car interiors: Employed in seat covers for durability and stain resistance, headliners, and various insulation components for sound dampening and thermal management.

Furniture Industry

Similar to home textiles, PSF is crucial in furniture manufacturing.

Use in upholstery, padding, and cushioning: It provides structure, comfort, and durability in sofas, chairs, and mattresses. Its resilience helps furniture maintain its shape over time.

Hygiene Products

The absorbency (when treated) and soft feel of PSF make it ideal for disposable hygiene items.

Use in diapers, sanitary napkins, and wipes: It contributes to the absorbent core and soft top sheets in these products.

Geotextiles

PSF's strength, durability, and resistance to environmental degradation make it suitable for civil engineering applications.

Use in soil stabilization, erosion control, and drainage: Geotextiles made from PSF are used beneath roads, in retaining walls, and in drainage systems to prevent soil erosion, separate layers of aggregate, and improve drainage.

Advantages and Disadvantages of Polyester Staple Fiber

Polyester Staple Fiber, despite its widespread use, has both significant benefits and some drawbacks, though ongoing innovations are addressing the latter.

Advantages

Durability and Longevity: PSF boasts excellent tensile strength and abrasion resistance, making fabrics and products made from it highly durable and long-lasting. They can withstand repeated use and washing without significant degradation.
Resistance to Wrinkling and Shrinkage: One of polyester's most appreciated qualities is its ability to resist wrinkles and shrinkage. This makes garments easy to care for and helps them maintain their appearance over time, even after washing.
Cost-Effectiveness: Compared to many natural fibers and other synthetics, PSF is generally more cost-effective to produce. This contributes to the affordability of a wide range of products, from clothing to home furnishings.
Versatility in Applications: As demonstrated by its extensive list of applications, PSF is incredibly versatile. Its properties can be engineered for various uses, from soft apparel to robust industrial fabrics and resilient filling materials. It also blends well with other fibers, further expanding its utility.

Disadvantages

Lower Moisture Absorbency compared to natural fibers: Polyester is inherently hydrophobic, meaning it repels water. While this makes it quick-drying, it also means it absorbs less moisture than natural fibers like cotton or wool. This can sometimes lead to a "clammy" feel in apparel, especially during strenuous activity, as it doesn't wick sweat away as effectively. However, advancements in fiber technology have led to moisture-wicking polyesters to address this.
Environmental Concerns related to production and disposal: The traditional production of virgin PSF relies on petroleum-based raw materials, contributing to fossil fuel consumption and carbon emissions. Furthermore, its synthetic nature means it is not biodegradable and can persist in the environment for hundreds of years, contributing to plastic pollution, particularly microplastic shedding from textiles. However, the rise of recycled PSF directly addresses these concerns by utilizing post-consumer waste (like PET bottles) and reducing the demand for virgin resources, thus significantly lowering its environmental footprint. This shift towards circularity is a major improvement in the sustainability profile of PSF.

Conclusion

Polyester Staple Fiber (PSF) is a versatile synthetic fiber derived primarily from polyethylene terephthalate (PET). Its short, cut lengths distinguish it from continuous filament fibers, allowing it to be spun into yarns similar to natural fibers. PSF is characterized by its high strength, excellent wrinkle and shrinkage resistance, good dimensional stability, and hydrophobic nature. These properties make it indispensable across numerous sectors, from the apparel and home textiles industries to non-woven applications, automotive interiors, and geotextiles.

The manufacturing process of PSF involves polymerization to create PET, followed by melt spinning into continuous filaments. These filaments are then drawn to enhance strength, crimped for bulk and resilience, and finally cut into staple fibers before being baled. While traditionally produced from virgin petrochemicals, the increasing use of recycled PSF, primarily from PET bottles, significantly mitigates environmental concerns related to resource consumption and waste.

Looking ahead, future trends and innovations in PSF are heavily focused on sustainability and enhanced performance. We can expect to see continued advancements in:

Circular economy models: Increasing use of chemical recycling to produce PSF from textile waste, not just PET bottles.
Bio-based polyesters: Research into using renewable resources for polyester production, further reducing reliance on fossil fuels.
Functional finishes: Development of PSFs with advanced properties like enhanced moisture management, antimicrobial features, flame retardancy, and UV resistance for specialized applications.
Biodegradable polyesters
